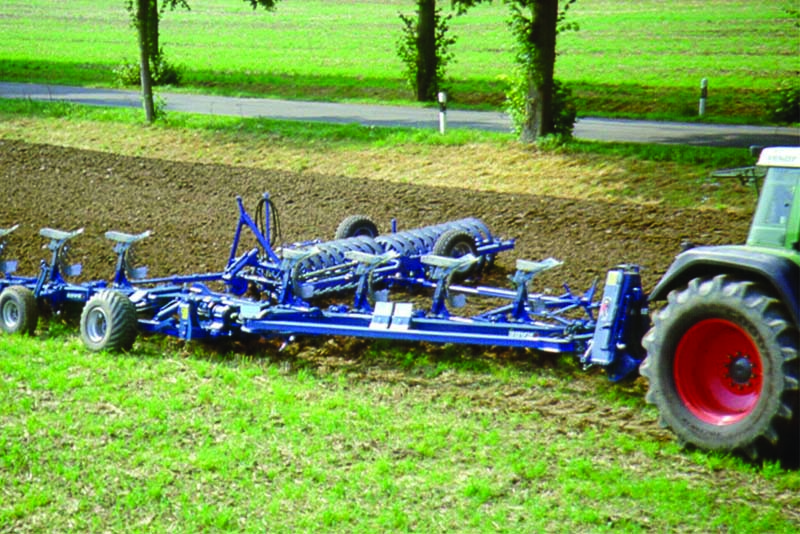

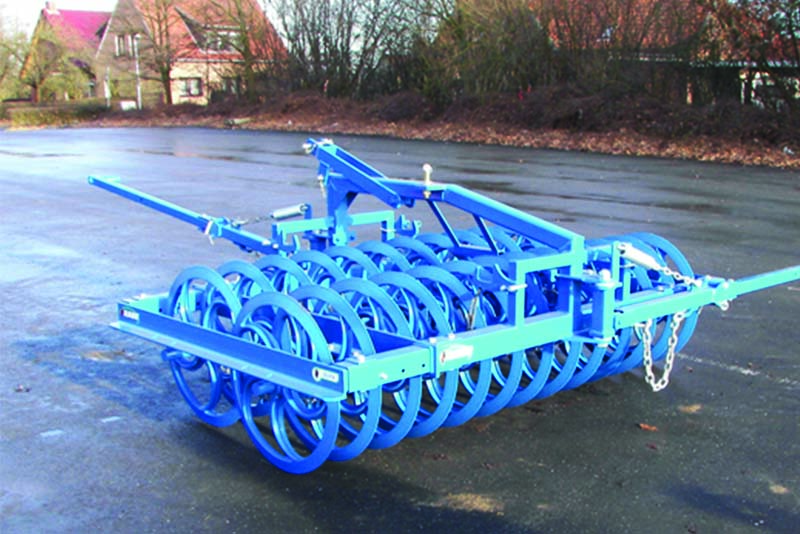

Trailed plow rollers UPA made by RABE (Germany)

Designed for additional soil compaction immediately after plowing. Easily hooked and transported. An excellent result after ploughing, as two functions are performed simultaneously — ploughing and rolling.

Basic equipment:

  • Levers for mounting on a reversible plow
  • Category II hitch for transportation
  • Beam of scrapers
  • Sliding telescopic frame
  • For working widths over 2.30 m, reinforced bearings are standard

Name

Working

width, m

Weight, kg

Number
wheels

Single row:

• Wheel diameter 900 mm

• Round profile 38°, width
profile 65 mm

• Distance between wheels 20
see

• Wheels made of high-strength
cast iron

1.5–3.7

840–1950

8-19

Two rows:

• Wheel diameter 700 mm

• Round profile 35°, width
profile 33 mm

• Distance between wheels 10
see

• Wheels made of high-strength
cast iron with curved spokes

1.7–3.7

890–1820

17-37

Single row:

• Wheel diameter 900 mm

• Round profile 38°, profile width 65 mm

• Distance between wheels 15 cm

• Ductile iron wheels

1.95-4.65

1270–3030

13-31
