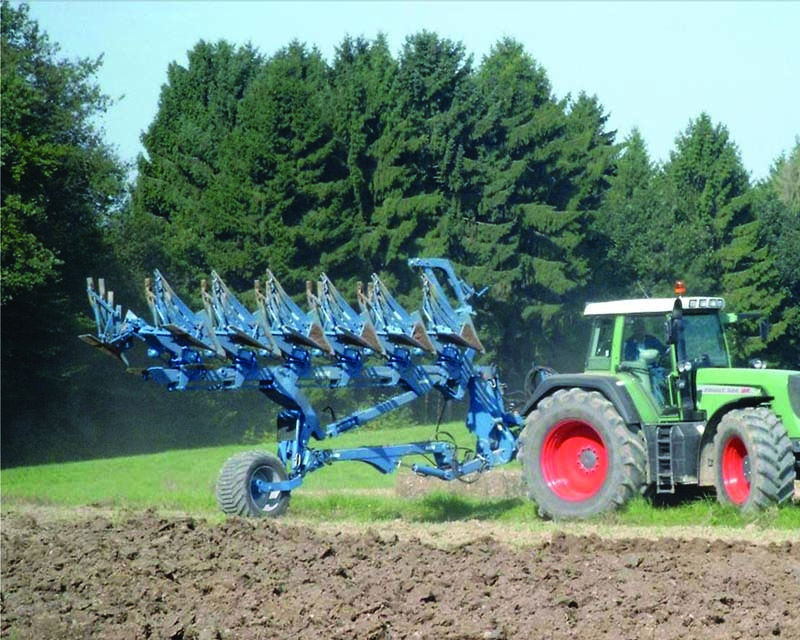

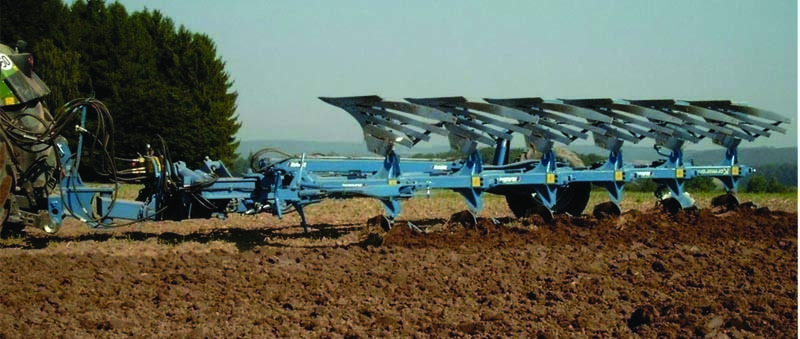

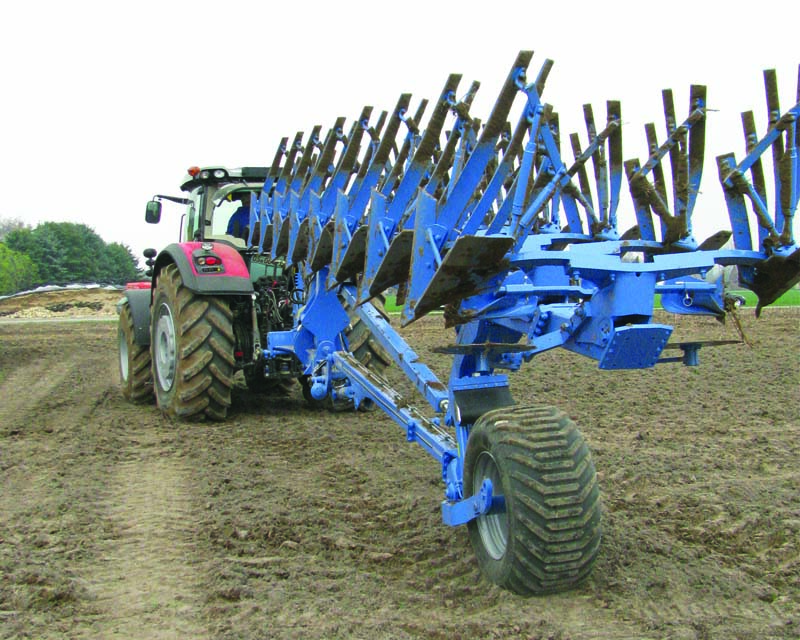

Semi-mounted plows KORMORAN model made by RABE (Germany)

Semi-mounted reversible plow for working on standard and heavy soils. Designed for plowing both heavy and light sandy soils. Plow settings (dumps, skimmers, frame inclination, depth control, share protection) allow you to adapt the plow to any tractor and use it when working on stony soils. The NON-STOP hydraulic protection system (optional) makes it possible to increase the productivity of the plow due to its continuous work in the field. Additionally, shear bolt protection is installed to prevent breakage of the rack. The NON-STOP system has a function to adjust the response pressure. Patented frame and strut design withstands peak loads without compromising size. All components for working on heavy soils are installed in the basic configuration. Possibility to use with rollers. Excellent maneuverability due to the articulated frame.

Basic equipment:

• Bit force 2300 kPa
• Frame 160x160x10 mm
• Shear bolt protection for each body
• 100 cm spacing
• Working width: 34, 39, 44*, 49 cm (*Factory setting)
• Distance under the frame 80 cm
• Hydraulic turnover system
• Category III: III and IV shortened category on request
• Standard wheel 400/55-22.5 14 PR (Ø1015 x 405) for 5, 6 and 7 bodies
• Wide wheel 500/45-22.5 12 PR (Ø 994 x 503) for 8 and 9 bodies
• Hydraulic 1st body offset adjustment
• STANDARD EQUIPMENT hard coated shares (Plasmabid) or shares with bolt-on chisel
