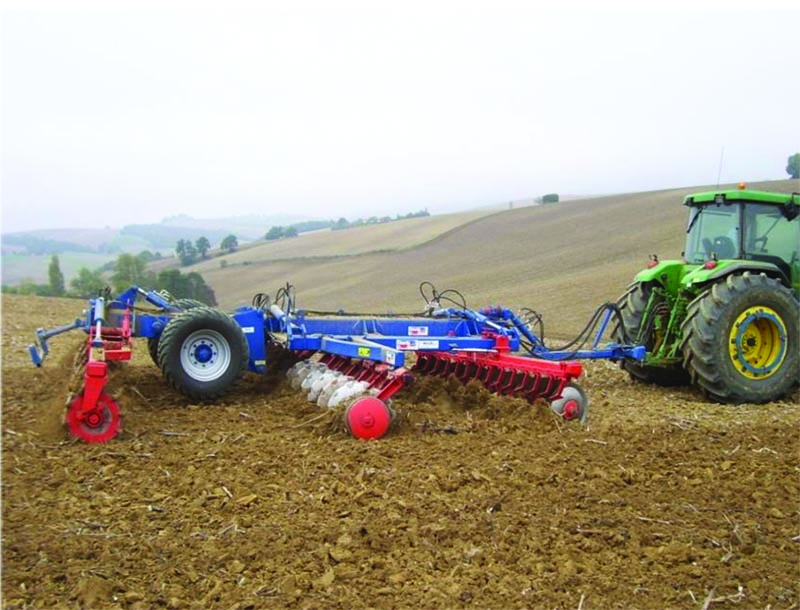

Trailed disc harrows BUSSARD model produced by RABE (Germany)

Designed to work with both minimal and classical technology. When working, they perform high-quality cutting of the working layer and mixing of crop residues with the soil. Patented triple protection of bearing units. The model is adapted to work on heavy loamy soils.

Basic equipment:

  • Chassis: monobeam tube 300x300x10
  • Side frames: 180x100x8
  • Transport position: vertical folding — 2.50 m
  • Carrier axle: 15 R 22.5 or 385/65 R 22.5 TZA wheels
  • Brake: hydraulic
  • Locking: hydraulic
  • Folding: hydraulic 2-bolt up to 48 discs and beyond
  • Shaft: 40 mm square
  • Double taper bearings with triple protection
  • Alternating mounting discs (smooth + serrated) Ø 660mm/6mm
  • Spreading disc
  • Rear smoothing disc
  • Space between discs 230 mm
  • Pin hitch or bottom hitch of Category II or III tractor
  • Hydraulic drawbar compensation — hydraulic shock absorber
  • Rod roller 600 mm
  • Disc battery lock

Name

Working

width, m

Weight, kg

Number
bearing units

Number of disks

Tractor power, l
c

JPR 36
C

4,6

5700

10

36

from 185

JPR 40
C

5,0

6200

10

40

from 195

JPR 44 C

5,4

6755

12

44

from 215

JPR 48 C

5,8

7310

12

48

from 230

JPR 52 C

6,2

7865

16

52

from 280
