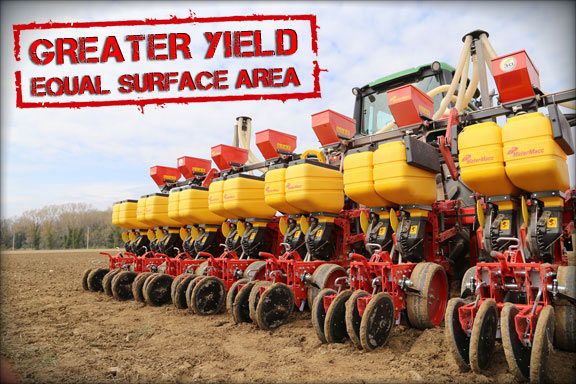

MaterMacc MS Twin Precision Planters
Designed for a yield commensurate with the crop area
MS TWIN two-row precision seed drill based on MS-8000 tines, twin fertilization disc allowing seed to be staggered in rows MaterMacc MS Twin seed tines sow in rows spaced 22 cm apart. Distance between centers rows 70 cm. Models are produced from 2 to 12 double rows.
| Number of Rows | Row Spacing | Frame Width | Weight | Wattage Required | Capacity | |||
|---|---|---|---|---|---|---|---|---|
| standard | with fertilizer | seeds | micro | fertilizer | ||||
| (cm) | (cm) | (kg) | (hp ) | (liters) | ||||
| 2×2 | 70/75 | 150 | 630 | 720 | 40- 50 | 140 | 24 | 215 |
| 4×2 | 70/75 | 285 | 1270 | 1450 | 100- 110 | 280 | 48 | 430 |
| 6×2 | 70/75 | 450 | 1480 | 1760 | 110- 120 | 420 | 72 | 430 |
| 8×2 | 70/75 | 630 | 1870 | 2250 | 120- 130 | 560 | 96 | 1300 |
| 12×2 | 70/75 | 945 | 2310 | 2750 | 140- 150 | 840 | 144 | — |
Standard equipment
- Stands are set at the factory and do not need to be tested
- No clogging between depth control wheels
- Minimum distance between frame and seeding point to reduce hitch load
- Synchronized stitches in the row to keep seed spacing constant
- Option to create tramlines
