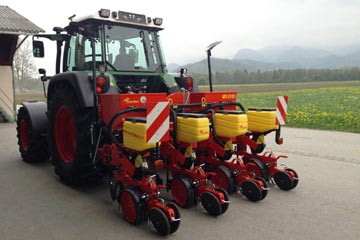

MaterMacc MS 8100 Precision Planters

Rigid frame vacuum precision seed drills

These seeders are simple in design and do not require special skills to set up. The seeding tines are mounted on a single carrier frame, making these planters very compact.

Number of Rows Row Spacing Frame Width Weight Wattage Required Capacity
standard with fertilizer seeds micro fertilizer
(cm) (cm) (kg) (hp) (liters)
2 75 180 320 430 40-50 70 12 2×70
4 75 250 580 720 40-60 140 24 2×170
5 45 250 760 920 50-70 210 36 2×170
6 75 400 790 950 60-80 210 36 2×215
8 45 350 935 4035 70-90 280 48 2×215
8 75 600 1050 1270 80-100 280 48 4×215
12 45 600 1370 1690 90-110 420 72 4×215

Standard equipment

  • Drive shaft
  • 21-speed gearbox
  • Hydraulic marker
  • Seeding disc set
  • Vacuum gauge
  • Conveyor for collecting the remaining seeds
  • Cutting small seeds
  • PTO 540 rpm
  • Seed Meter Relief Spring Attachment
  • V-shaped press wheels 1″
