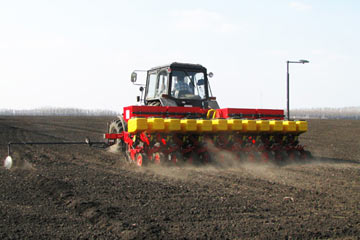

MaterMacc MS 4100 Precision Planters

Rigid frame vacuum precision seed drills

These seeders are simple in design and do not require special skills to set up. The seeding tines are mounted on a single carrier frame, making these planters very compact.

Number of Rows Row Spacing Frame Width Weight Wattage Required Capacity
standard with fertilizer seeds micro fertilizer
(cm) (cm) (kg) (hp ) (liters)
2 75 180 280 390 40-50 70 12 2×70
4 75 250 500 640 40-60 140 24 2×170
6 45 250 640 800 50-70 210 36 2×170
6 75 400 670 830 60-80 210 36 2×215
8 45 350 775 875 70-90 280 48 2×215
8 75 600 890 1110 80-100 280 48 4×215
12 45 600 1130 1450 90-110 420 72 4×215

Standard equipment

  • Drive shaft
  • 21-speed gearbox
  • Hydraulic marker
  • Seeding disc set
  • Vacuum gauge
  • Conveyor for collecting the remaining seeds
  • Cutting small seeds
  • PTO 540 rpm
  • Seed Meter Relief Spring Attachment
  • FARMFLEX press wheels
