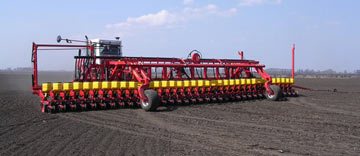

MaterMacc 3XL 800 Vacuum Precision Planters
Rigid frame vacuum precision seed drills
The seeder is designed for large farms that need to sow large areas of prepared soil. It consists of a transport frame on which two independent seeders are mounted. The frame wheels are both working (for balancing and changing the support pressure) and transport. transport width of 3.5 meters allows you to comfortably move the seeder on the roads. The working width can reach up to 16 meters (36 rows). Required tractor power — from 200 to 310 hp.
| Number of Rows | Row Spacing | Frame Width | Weight | Wattage Required | Capacity | |||
|---|---|---|---|---|---|---|---|---|
| standard | with fertilizer | seeds | micro | fertilizer | ||||
| (cm) | (cm) | (kg) | (hp ) | (liters) | ||||
| 16 | 70/75 | 1200 | 6400 | 7500 | 160- 190 | 1120 | — | 4×900 |
| 18 | 70/75 | 1300 | 6600 | 8100 | 180- 200 | 1260 | — | 4×900 |
| 24 | 45/50 | 1200 | 7400 | 9050 | 200- 220 | 840 | — | 4×900 |
| 24 | 70/75 | 1700 | 7800 | 9500 | 240- 280 | 1680 | — | 4×1350 |
| 30 | 45 | 1400 | 8100 | 9900 | 220-240 | 1050 | — | 4×1000 |
| 32 | 45 | 1500 | 8300 | 10200 | 240-280 | 1120 | — | 4×1000 |
| 36 | 45 | 1700 | 9000 | 10700 | 240-280 | 1260 | — | 4×1350 |
Standard modular frame
- 2 independent hitches mounted planters with nitrogen accumulator
- 4 wheels size 480/45-17
- Fan drive from tractor hydraulics
- Transport width 3.5 m
- 2 couplers
Standard equipment
- 8000 Series Seeding Racks
- Drive wheels size 23×10.5-12
- 21-speed gearbox — 2 pcs
- Vacuum meter
- One set of any seed discs
- Sowing devices for small seeds
- Dispenser emptying device
- Seed containers 70 l
- Monotronic 32 electronic sowing control
