Rimeco Grifo

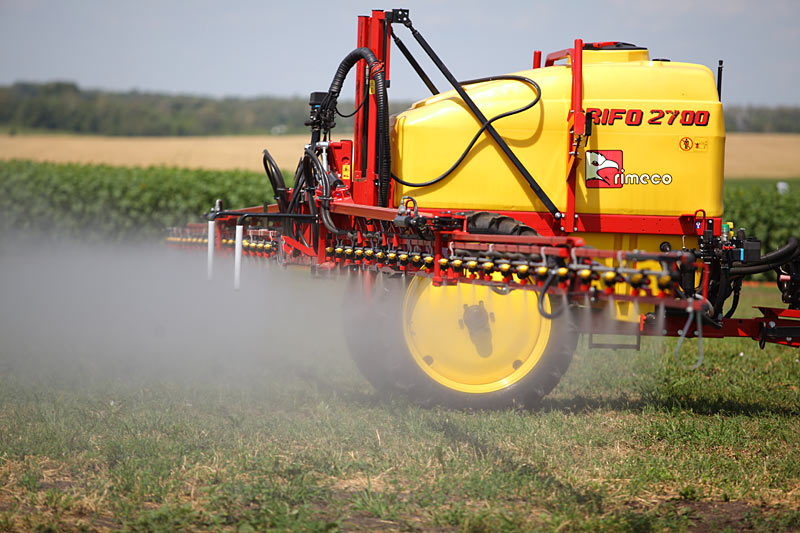

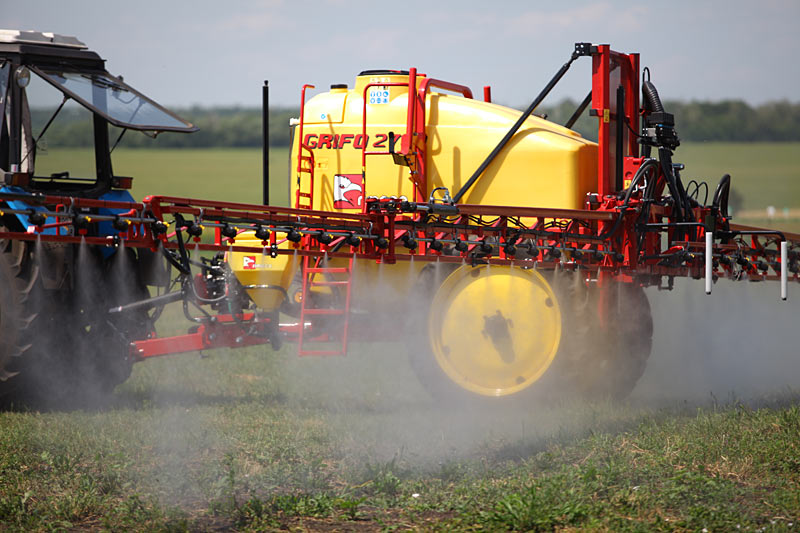

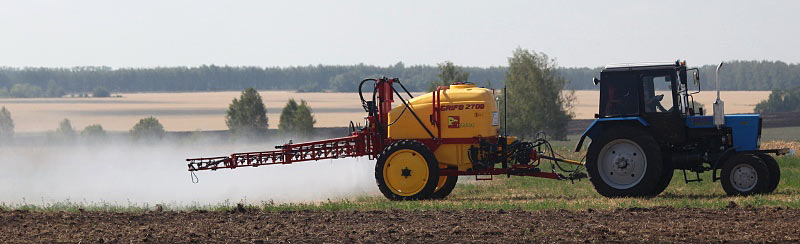

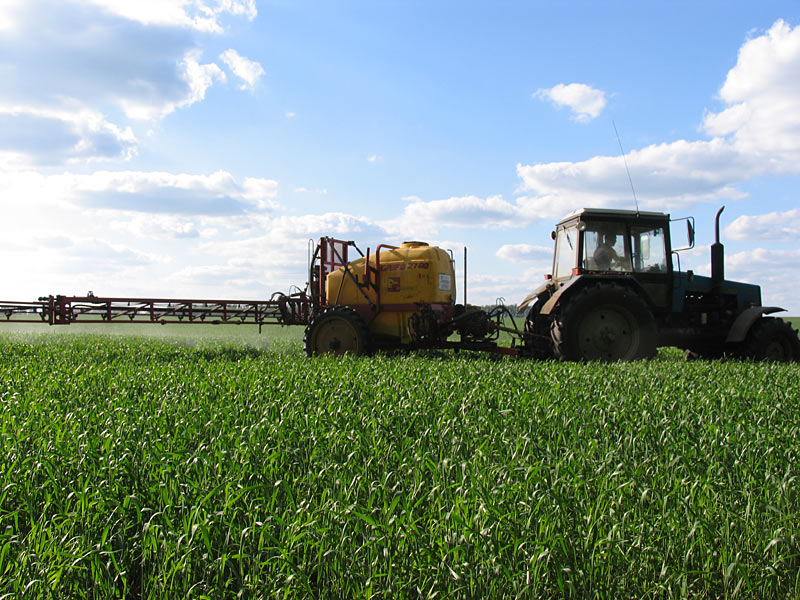

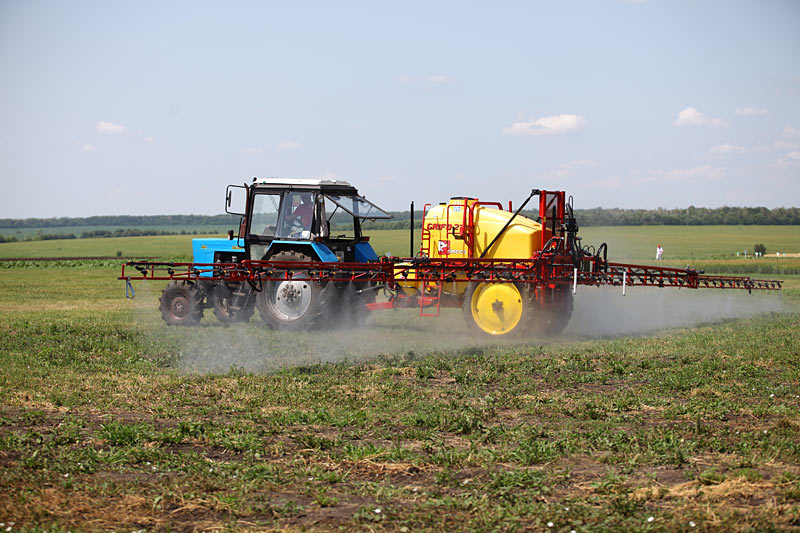

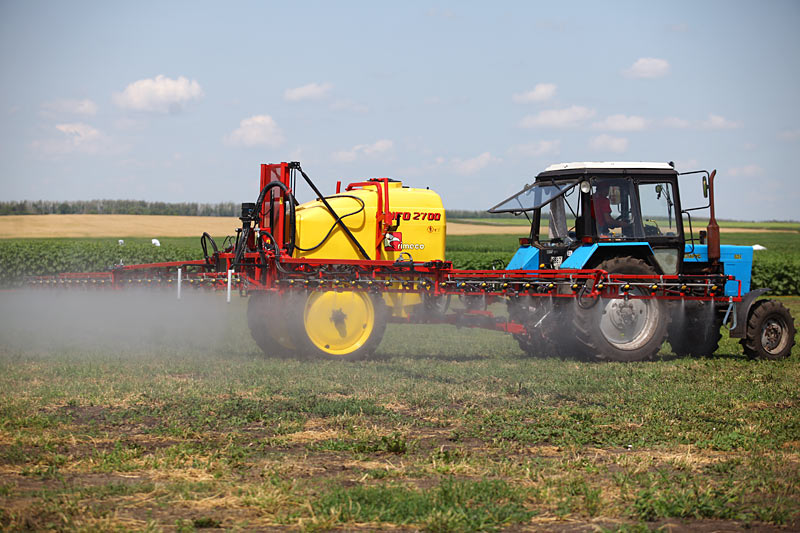

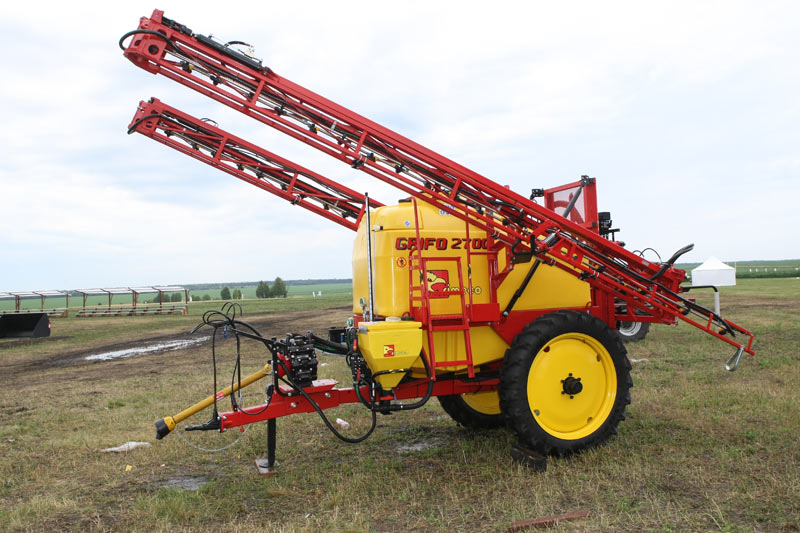

Rimeco Grifo trailed sprayers

Basic equipment:

Type:
Trailed sprayer for application by spraying aqueous solutions of herbicides, fungicides.

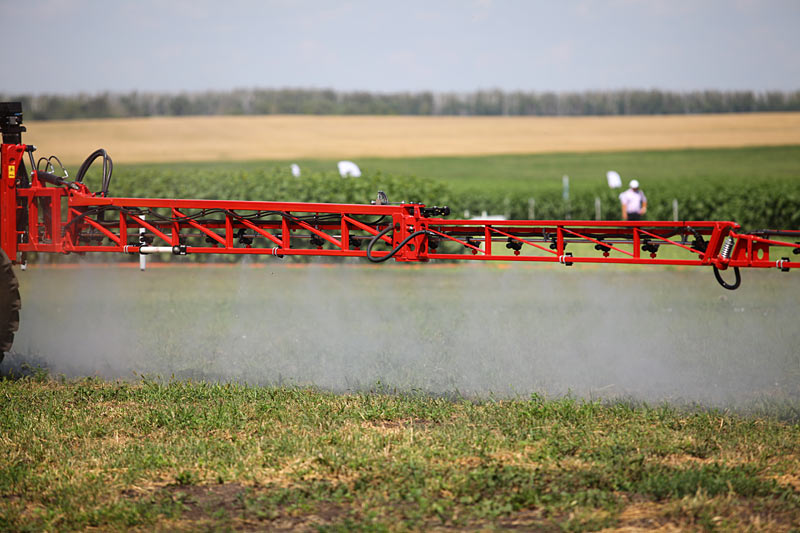

Bar:

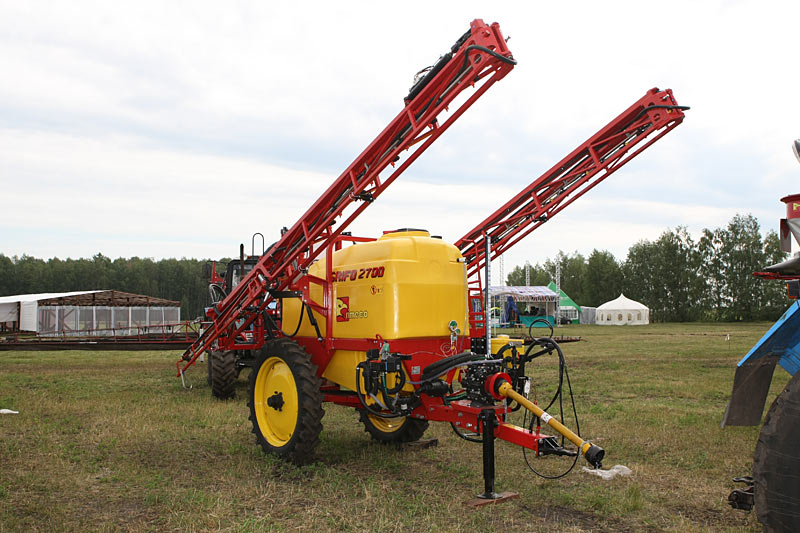

Composite, hydraulically folded, collision protection, mechanical compensation, reinforced. For protection it is covered with several layers of powder paint. Autonomous hydraulic control system. Boom lifting height — 1.2 m.

Boom stabilization system for working on uneven surfaces, pendulum type.

Attachment of nozzles with the simultaneous installation of three different nozzles (3 sets of nozzles included).

Frame:
All-metal, covered with several layers of powder paint for protection.

Capacity:
Plastic one-piece, container for washing hands — 20 l, mixer for mixing concentrates — 30 l. Graduated liquid level scale. Anti-wave partition of the main tank.

Working fluid supply system:
Type — a diaphragm pump with an electric flow control system, a solution preparation system for liquid and bulk concentrates, a tank injection system, a two-stage filtration system.

Pump capacity — 250 l / min (for model 2200 l, 18 meters rod — 180 l / min).

Electronic control system for the supply of working fluid — BRAVO, the computer is installed in the tractor cab (monitoring the flow rate, changing parameters on the move, counting areas).

Concentrate mixing system:
Includes a mixer for mixing liquid and powder concentrates.

Wheels:
Standard size 230/95R36.

Overall dimensions:
Ground clearance: — 0.60 m (for wheels 230/95R36).
Adjustable track, m — 1.4 — 1.8 / 1.8-2.1.
Width, m — 1.7.
Height, m ​​- 2.5.
Length, m — 3.8

Drive shaft (PTO)

Stair with platform

Rigid hitch — drawbar diameter 35mm

Sprayer models

Model	Capacity, l	Rod, m	Weight, kg
GRIFO 2700 l/24 m	2700	24.0	920
GRIFO 2700 l/21 m	2700	21.0	900
GRIFO 2200 l/18 m	2200	18.0	890

Note:
Sprayers can be equipped with various navigation systems (parallel driving, field map, etc.)
