Rimeco Aquila series

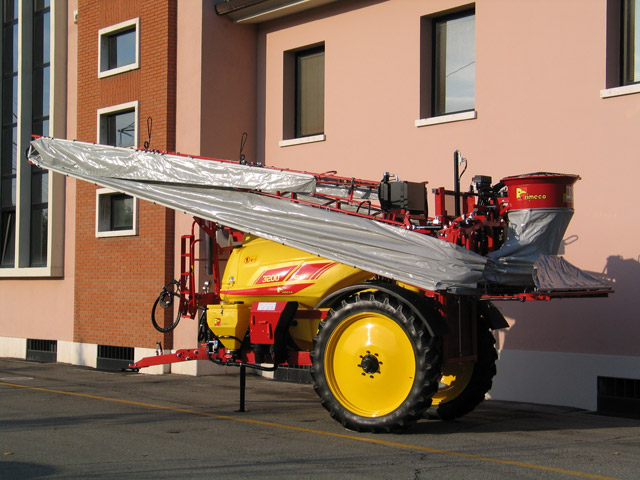

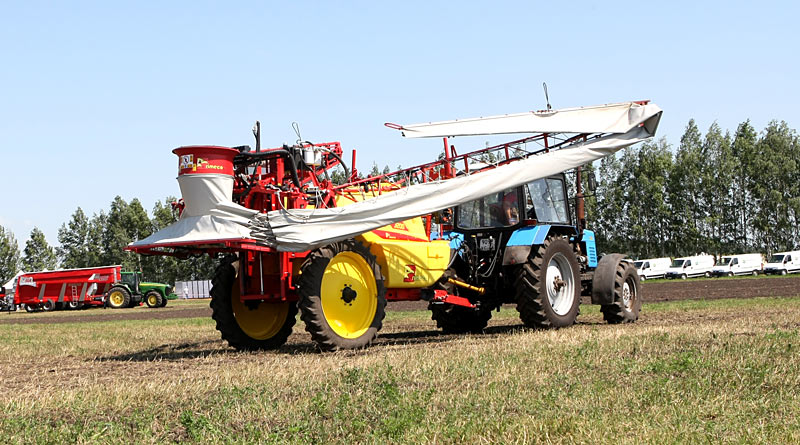

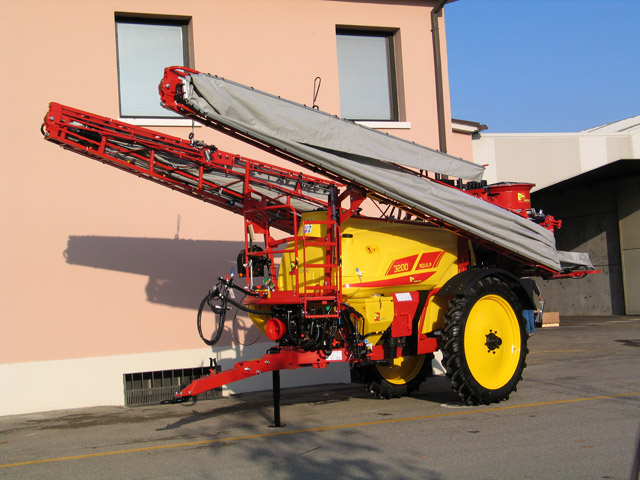

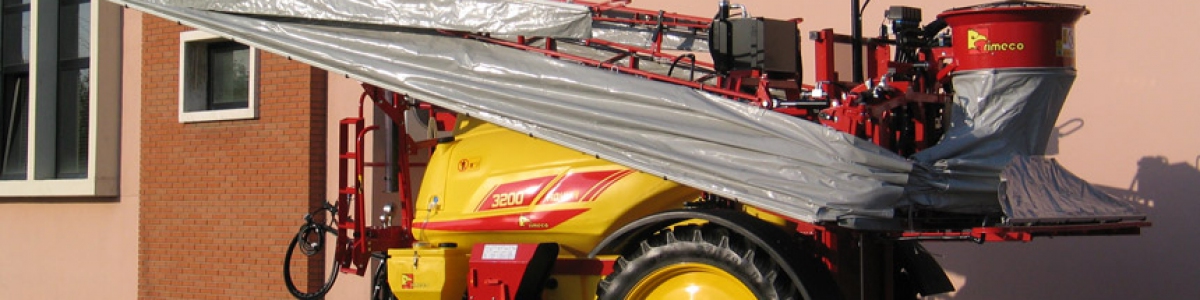

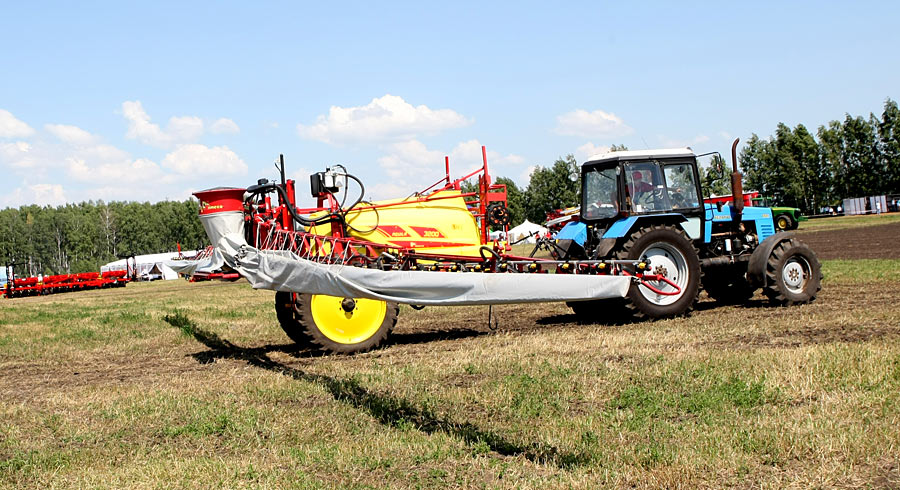

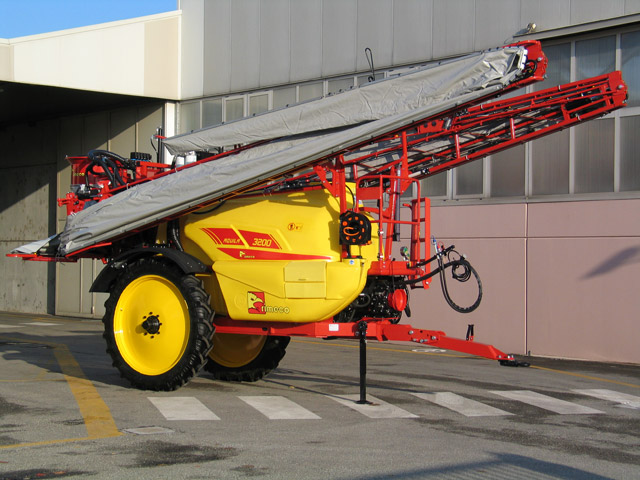

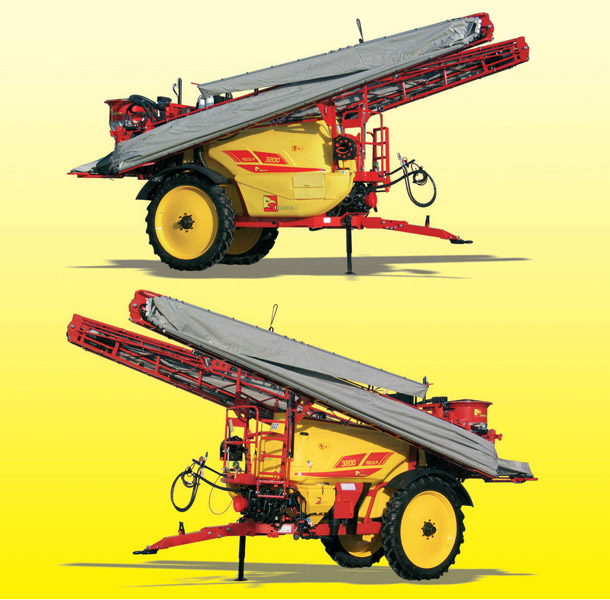

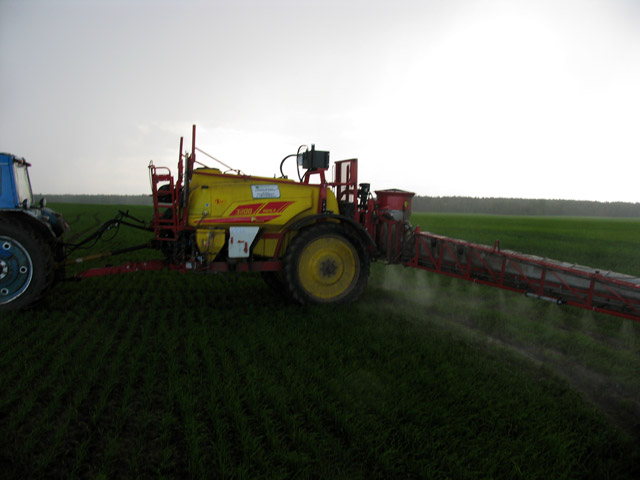

AQUILA trailed sprayers manufactured by RIMECO, Italy

Basic equipment:

Type:
trailed sprayer for applying drugs by spraying aqueous solutions of herbicides, fungicides.

Bar:
integral, hydraulically folded, collision protection with return mechanism, mechanical compensation, reinforced. For protection, the frame is covered with several layers of powder paint. Autonomous hydraulic control system. The boom stroke is 1.5 m. The maximum lifting height of the boom relative to the ground is 2.3 m. The required number of hydraulic ports is 1. The boom is lifted using the tractor hydraulics, a 7-position electro-hydraulic boom control switch (installed in the tractor cab — 4 functions of a bar, an inclination, a hydraulic lock, rise lowering). Boom tilt hydraulic cylinder.

Boom stabilization system for working on uneven ground, pendulum type. Pneumatic and gas shock absorber system for working on uneven surfaces and difficult conditions. Hydromechanical lock for fixing the rod, separate adjustment of the wings of the rod.
Fixing nozzles with simultaneous installation of three different nozzles (3 sets of nozzles included — 02-04-06 KEMATAL). 5-section liquid distribution on the boom. Additional line filters for each of the sections. Protection of the edges of the rod against falling by inertial springs.

Air blowing system:

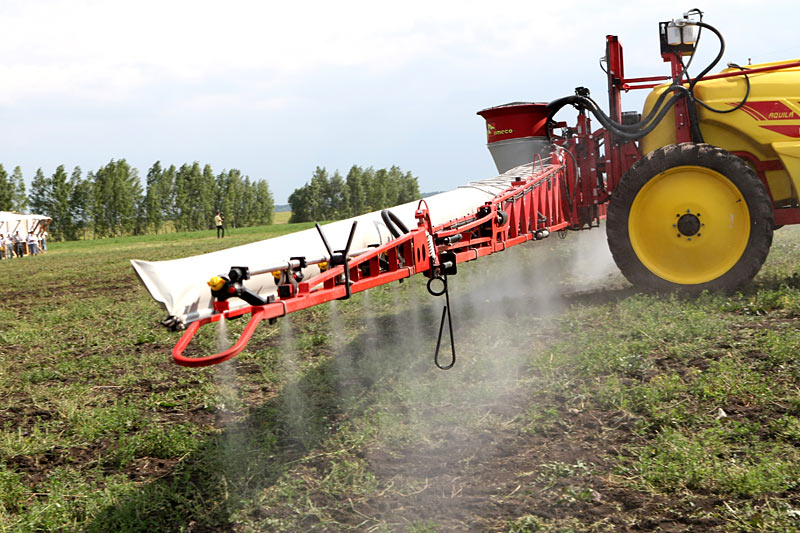

air blowing system for nozzles with slotted aluminum deflectors. Mounted on a bar. Designed to operate the sprayer in winds up to 12 m/s. Cover made of rubberized tarpaulin, independent hydraulic drive of one fan (driven by tractor PTO). Fan speed change system.

Frame:
all-metal, for protection it is covered with several layers of powder paint. Staircase with platform. Rigid hitch — hitch diameter 50 mm.

Capacity:
plastic one-piece, washing tank — 400 l, hand washing tank — 20 l, mixer for mixing concentrates — 30 l. Graduated liquid level scale. Anti-wave partition of the main tank, hydraulic mixers. Work clothes box.

Working fluid supply system:
diaphragm type pump with electric flow control system, tank filling and washing system, multi-stage filtration system, additional suction filter. Pump productivity — 250 l / min.
Electronic control system for the supply of working fluid — SPRAYLITE (manufactured by Muller, Germany), the computer is installed in the tractor cab (control over the flow rate, changing parameters in motion, counting areas). 5-section distributor.
Pump feed pressure and boom pressure indicators mounted on the front of the sprayer and visible from the cab.

Concentrate mixing system:
complete with a mixer for mixing liquid and powder concentrates with a flushing system.

Wheels:
Standard size  270/95 R44

Drive shaft (PTO) 6×8.

Kit for autonomous filling of the tank (hose with filter — 8.0 m).
