Gaspardo CAMPO С
This technique is available in the Bryansk and Oryol regions.

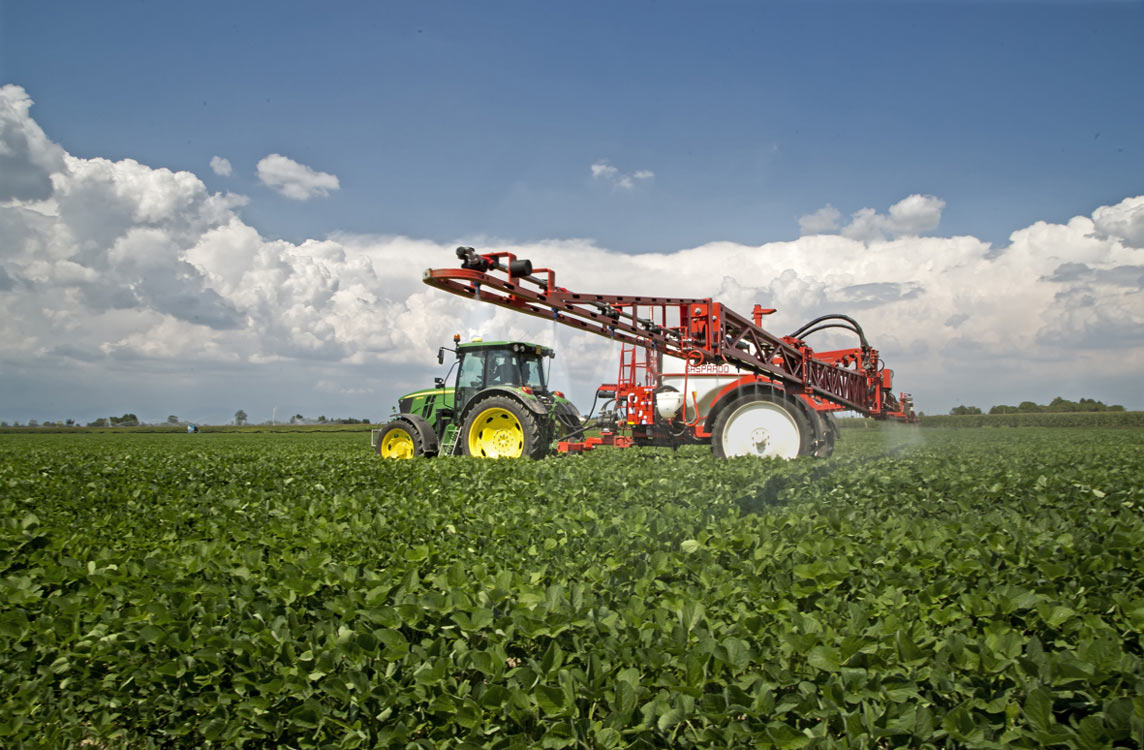

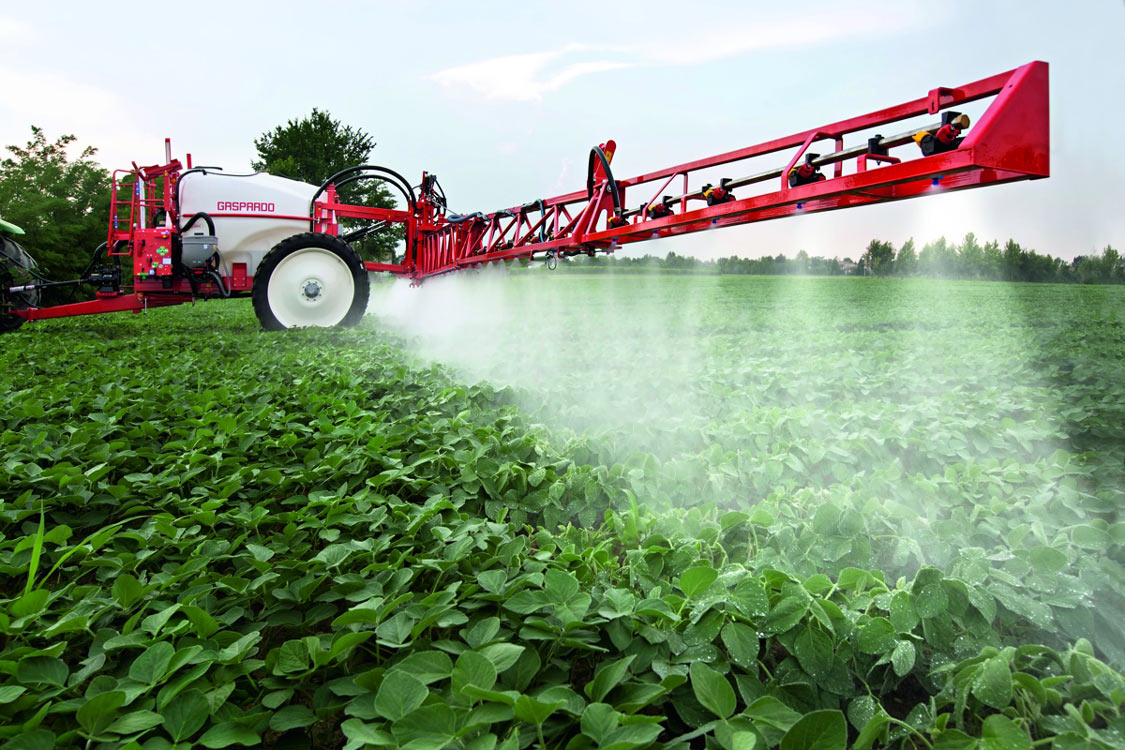

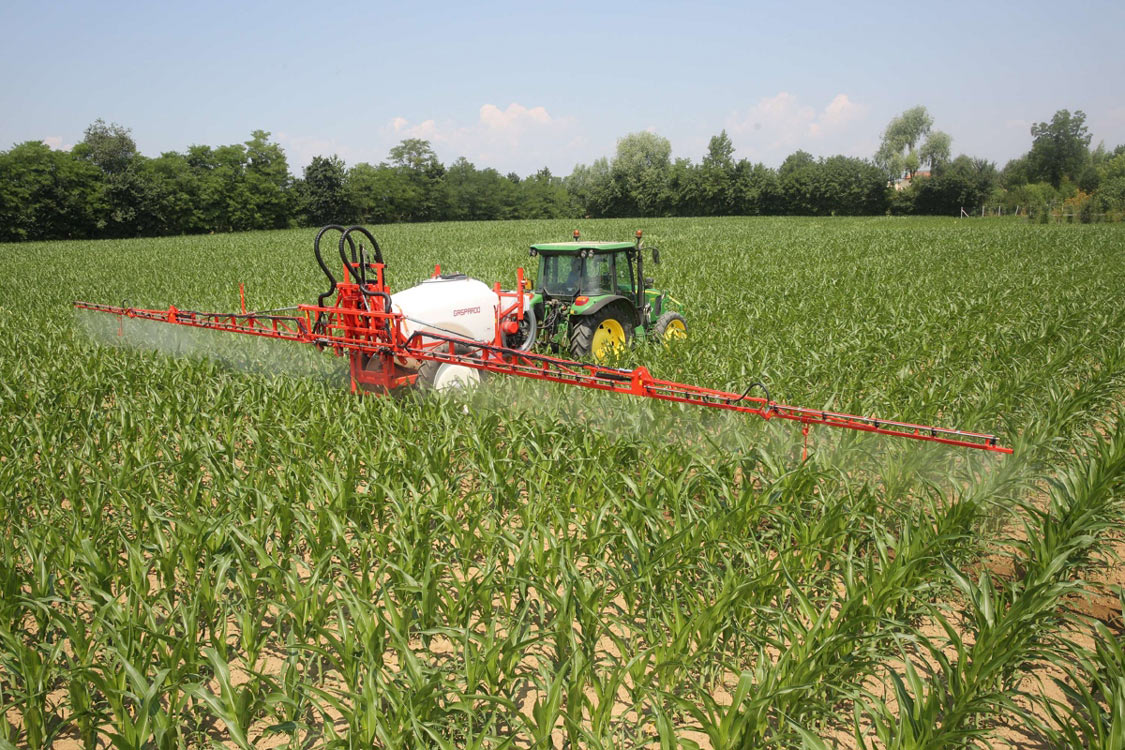

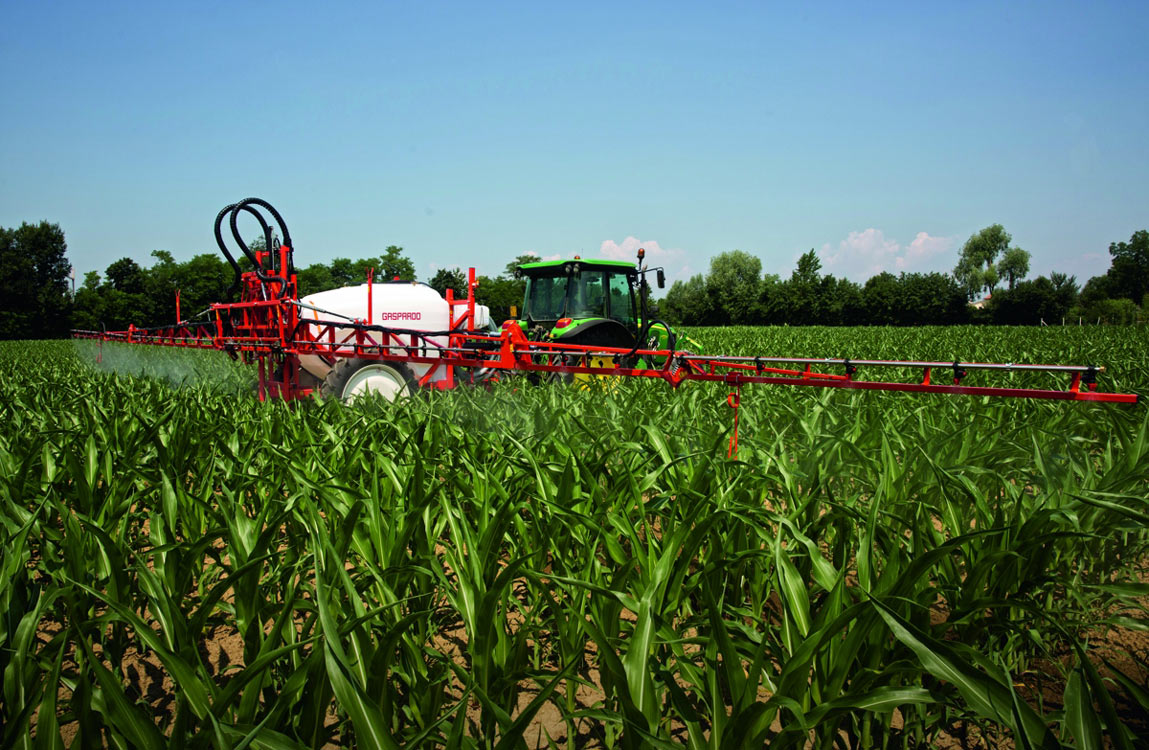

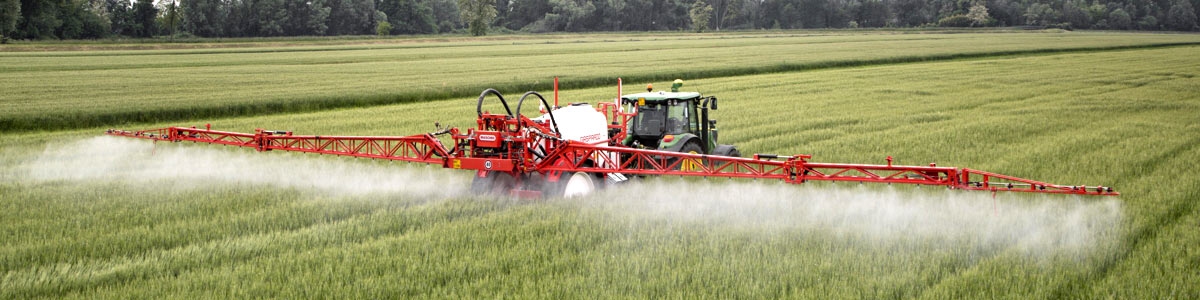

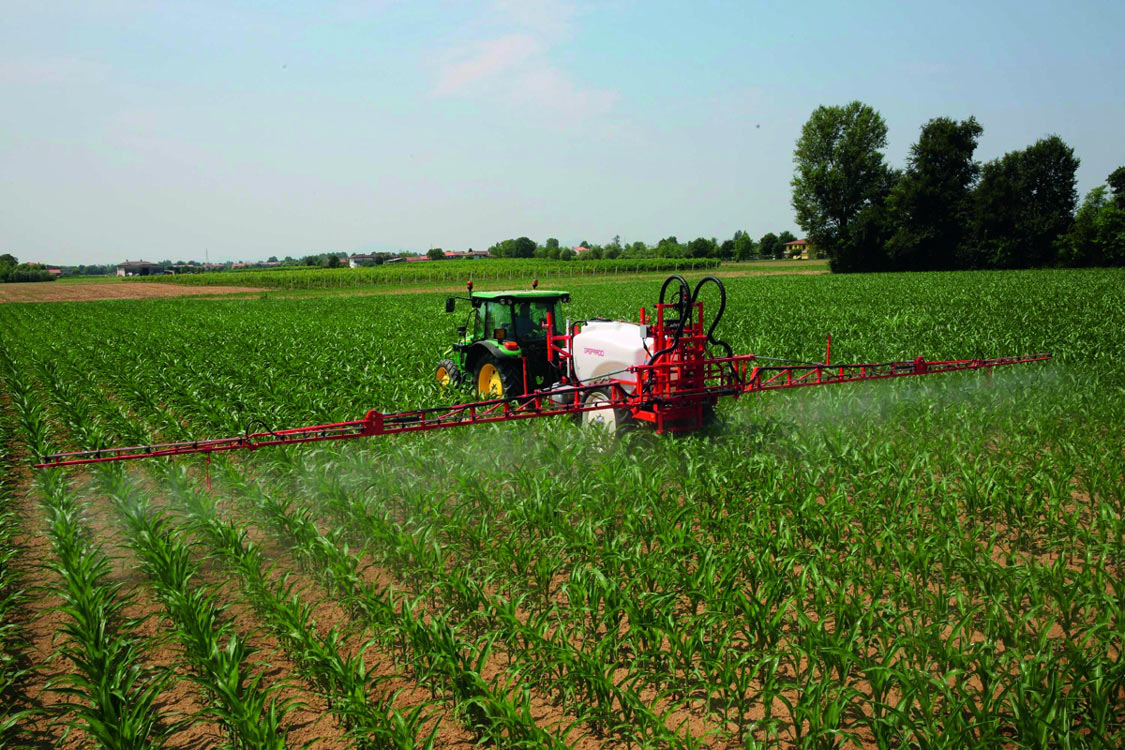

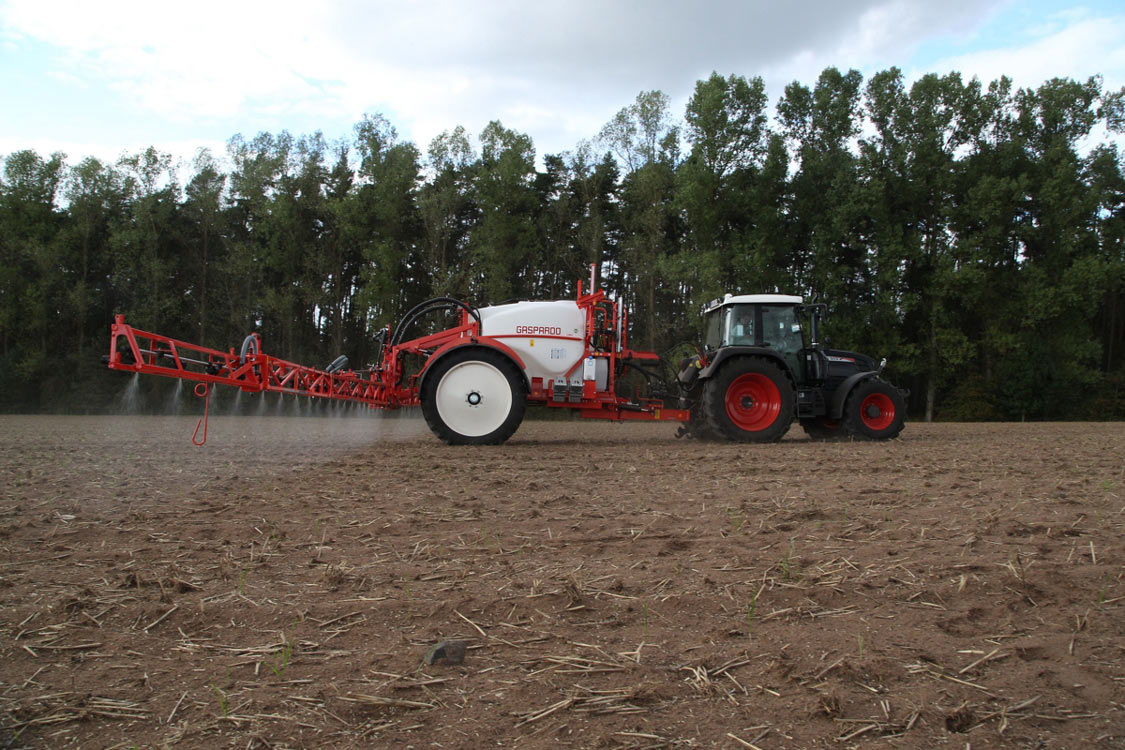

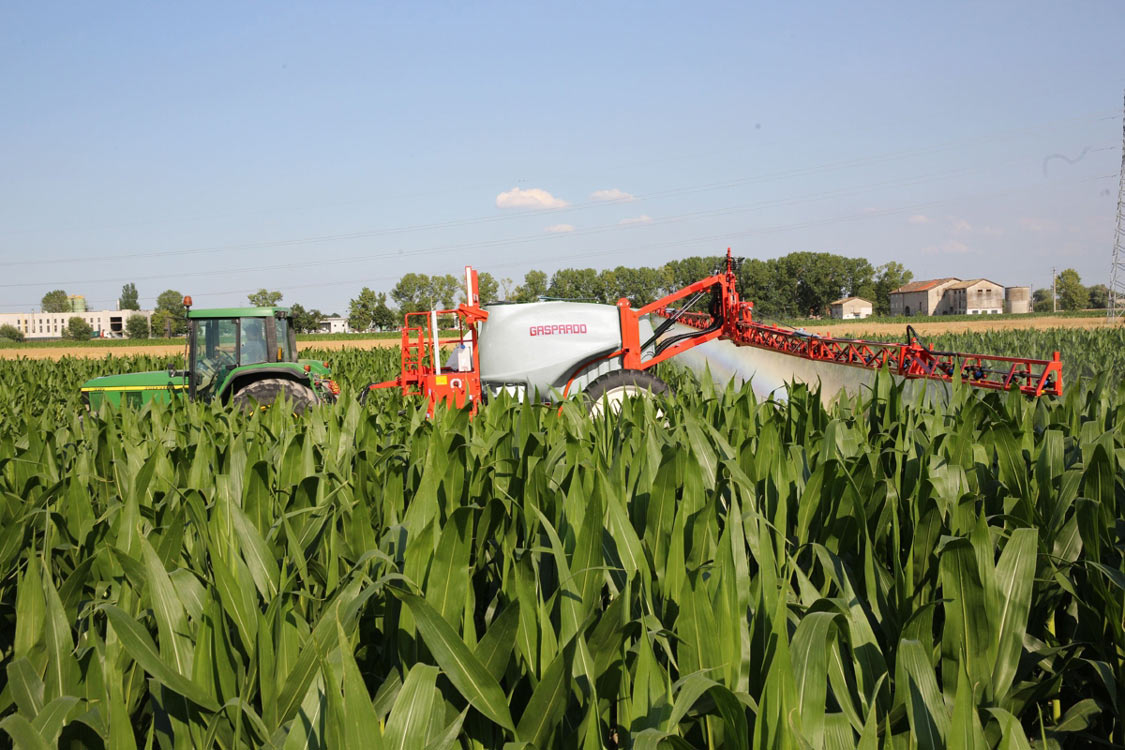

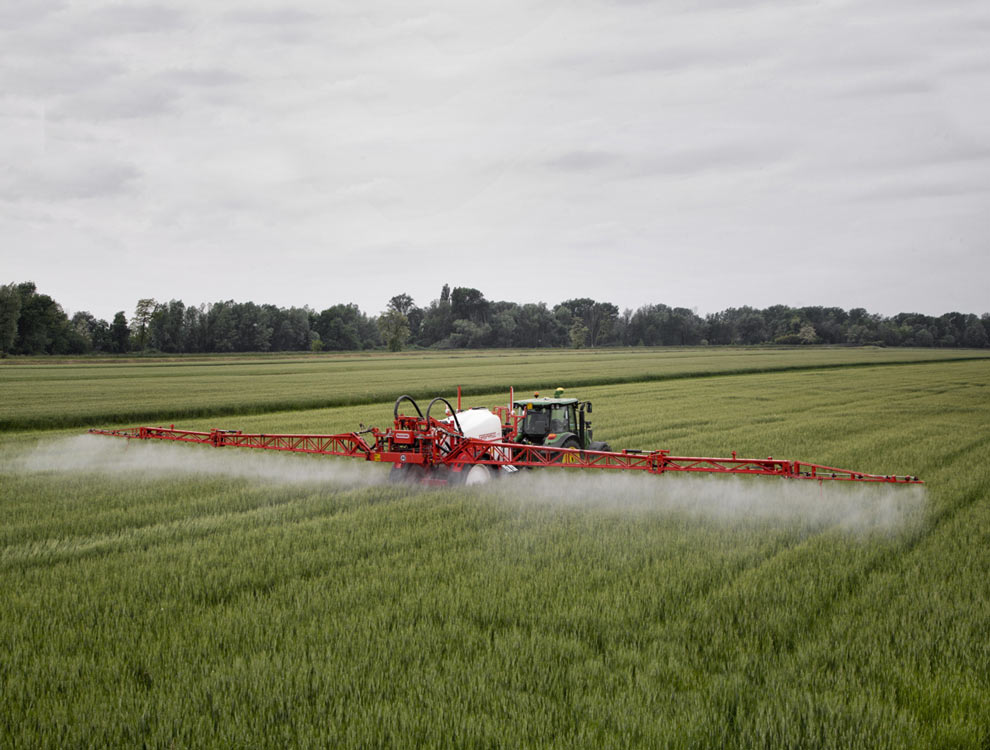

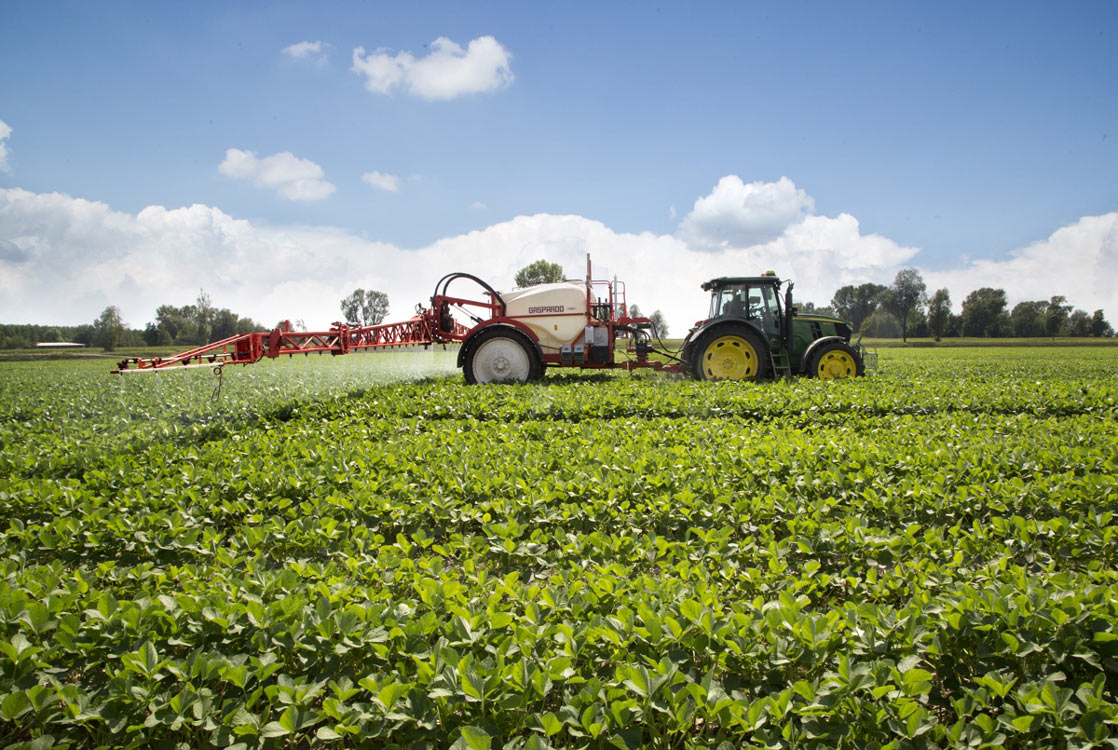

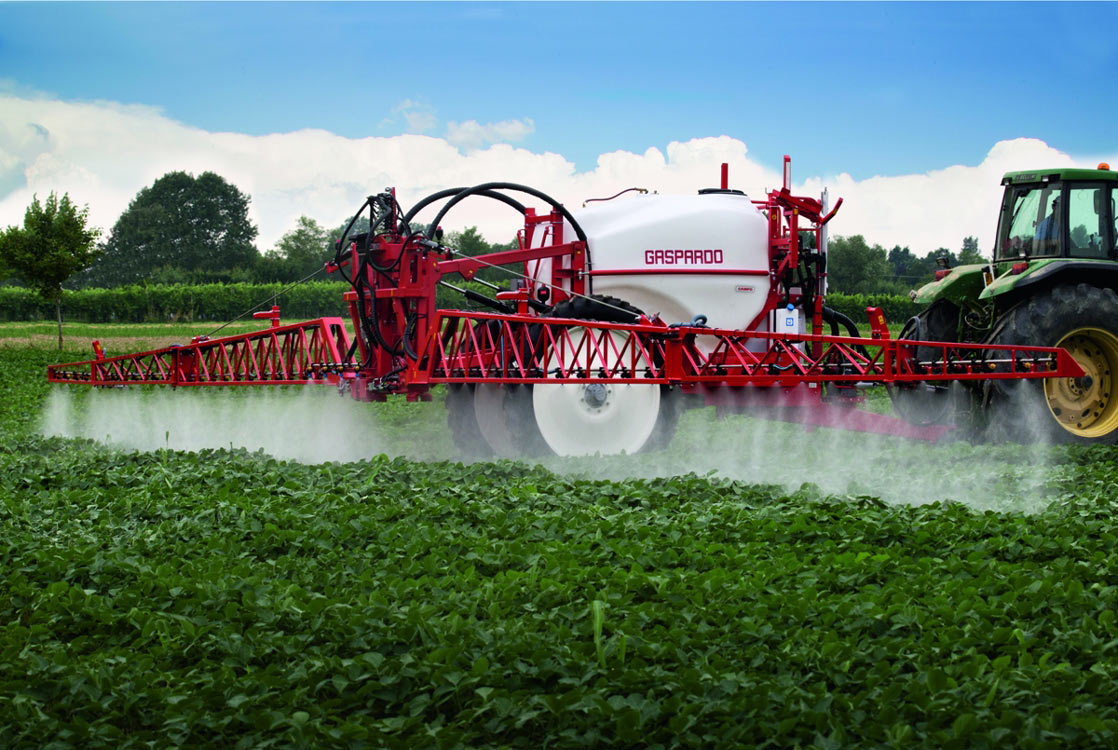

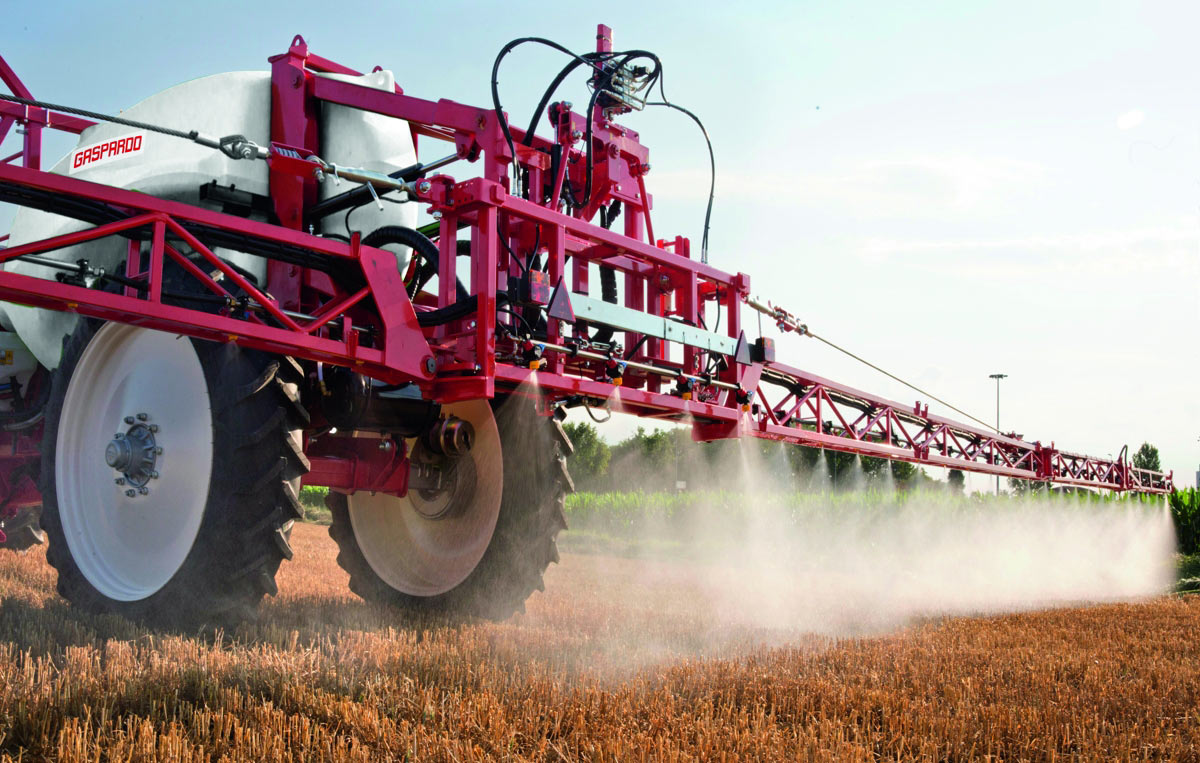

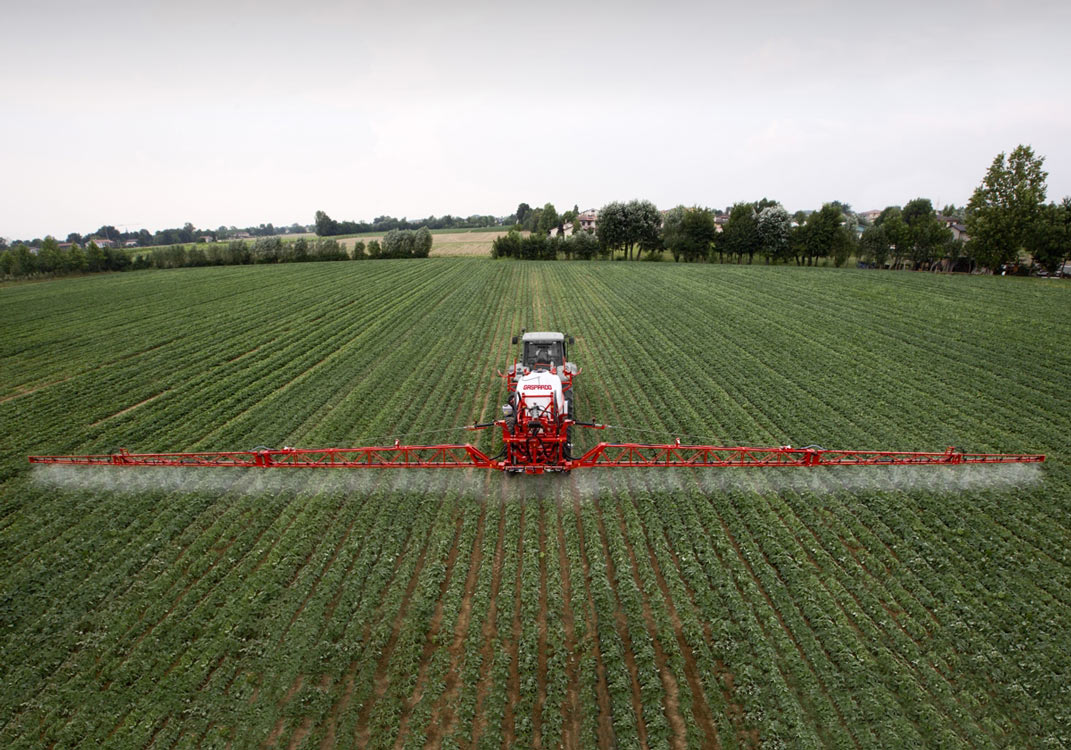

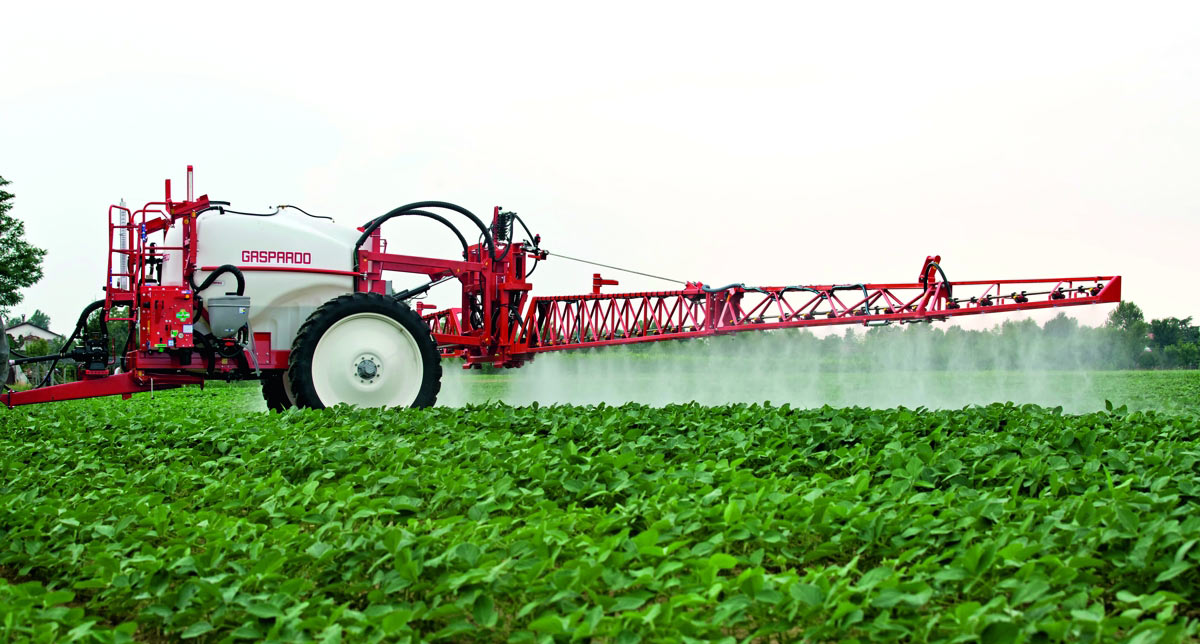

CAMPO C is ideal for small fields where sufficient autonomy and compactness are required when lifting the boom vertically. The smallest model of the four in this series has a tank capacity of 1500 l: this allows you to evenly distribute the weight of the tractor and sprayer on 3 axles, reducing soil compaction. This solution was developed especially for gardeners who are always very attentive to soil conditions.

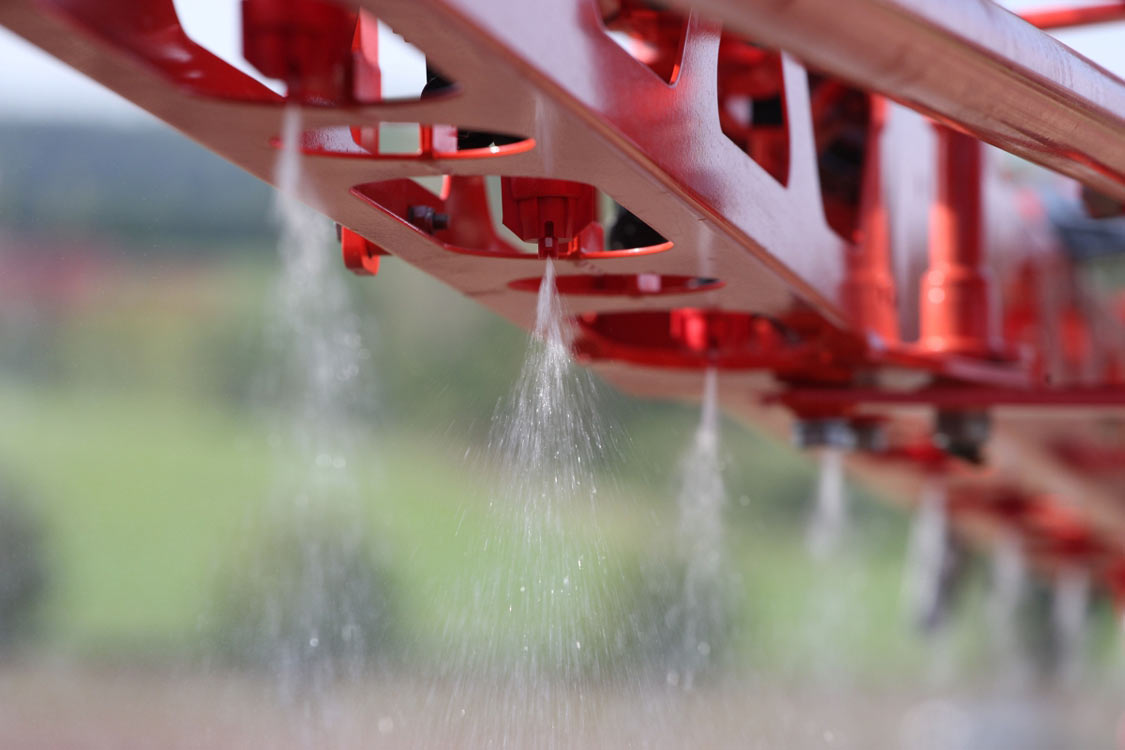

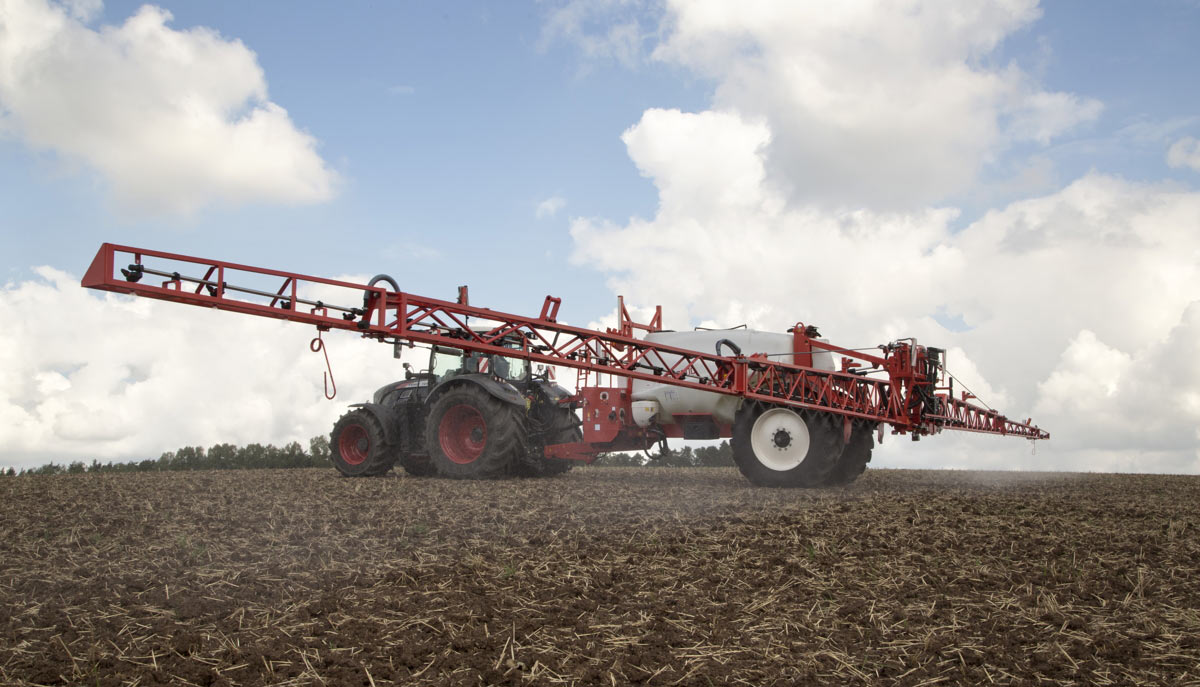

All models are equipped with a compact vertical lift hydraulic system: lifting heights from 10 m for small machines to 14 m for machines with a 2200 and 3200 l tank. The rod damping is provided by a nitrogen damper attached to the lift cylinder. CAMPO C can be ordered in different versions: with manual, electric or computer (standard or ISOBUS) pressure regulator. An air sleeve can be fitted on models with ALA 500 or 600.
| Version | Tank volume, l | Boom width, m | Pump, l/min-bar | Working width, mm | Room lift, mm | Number of sections on the boom |
|---|---|---|---|---|---|---|
| 15 | 1700 | 12-18 | 160-20 или 229-20 | 1400-2100 | 1000 | 5 |
| 20 | 2100 | 12-18 | 160-20 или 220-20 | 1400- 2100 | 1000 | 5 |
| 22 | 2400 | 18-22 | 250-20 | 1450 — 2100 | 1400 | 5 |
| 32 | 3200 | 18-22 | 250-20 | 1450 — 2100 | 1400 | 5 |
