COMPACT

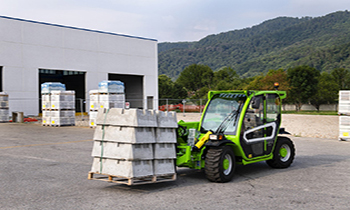

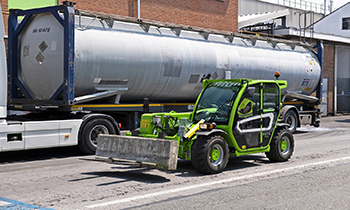

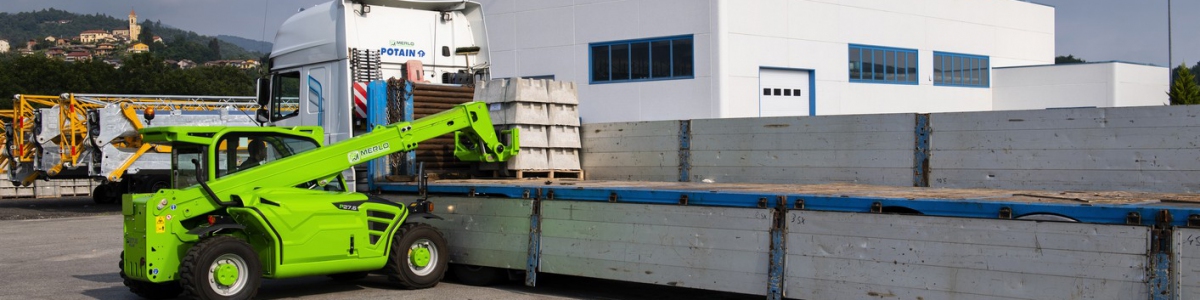

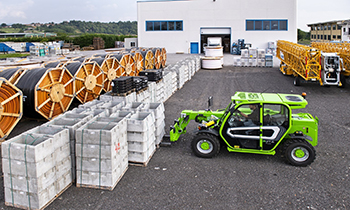

Small compact telehandlers of the COMPACT series were created specifically for use in particularly difficult, cramped conditions. Their small size is perfectly combined with a powerful engine, and adaptability to high loads, sudden pressure drops, various environmental conditions, make this model indispensable in a wide variety of industries.

Specifications:

Maximum lifting height, mm: 5 900

Load capacity max. , kg: 2 700

Load capacity at max. height, kg: 1 750

Load capacity at max. departure, kg: 1 000

Machine length without forks, mm: 3 910

Machine width, mm: 1 840

Height of the machine, mm: 1 920

Overall turning radius, mm: 3 370

Road clearance, mm: 270

Weight of the machine with forks, kg: 4 780

Engine: 4-cylinder diesel KUBOTA (Japan), liquid cooling, power 55.4 kW (75 hp) at 2600 rpm

Movement speed: up to 40 km/h

Transmission: hydrostatic with electronic control.

Cab: closed, all-weather with heating and a two-piece door, ROPS and FOPS protection systems, 360 ° visibility, adjustable seat, multi-operation joystick, seat belt, rear and front windshield wipers.

Arrow: telescopic, 2-section

Axles: Oscillating rear axle and rigid front axle.

Hitch frame «TAC-LOCK»: a system of quick change of hinges, which are changed without leaving the cab and controlled by a hydraulic cylinder.

Steering: 3 modes: crab, front wheels, all wheels

Drive: full on 4 wheels.

Brake: working — disc on all 4 wheels, parking — with automatic activation

Electrical system: battery 12 V, 100 Ah.

Security system: audible and visual alarms, overload blocking system.

Hydraulic system: gear hydraulic pump with constant flow rate 94 l/min, max. pressure 210 bar.

Tires: 12 x 16.5

Standard equipment: pallet forks (two movable teeth) 1,200 mm, two hydraulic lines to the end of the boom, flashing beacon, work light, reverse alarm, balloon wrench, instruction manual, list of spare parts.

Non-adjustable tow hook (capable of towing up to 4 tons) included

Air conditioning on

Rear differential lock enabled

Additional cab lighting 2 headlights front, 2 rear on

Cab sun blind included
