Perard Interbenne series

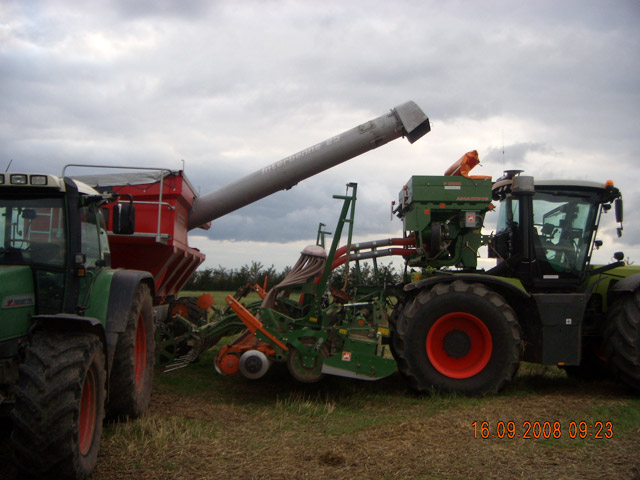

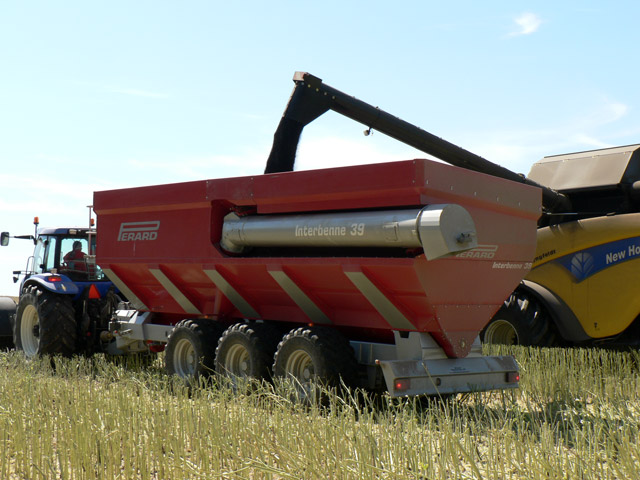

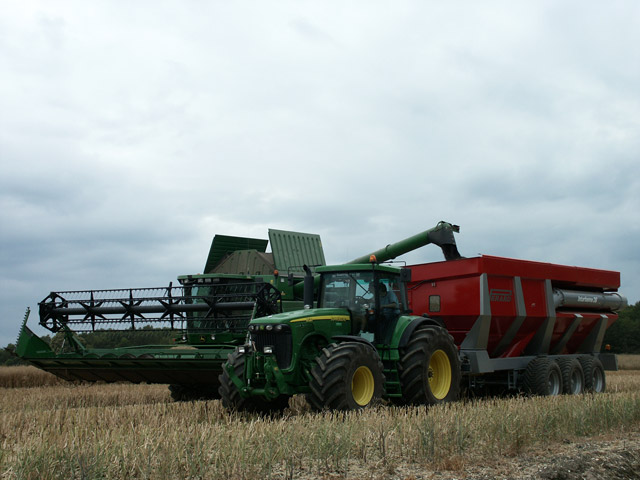

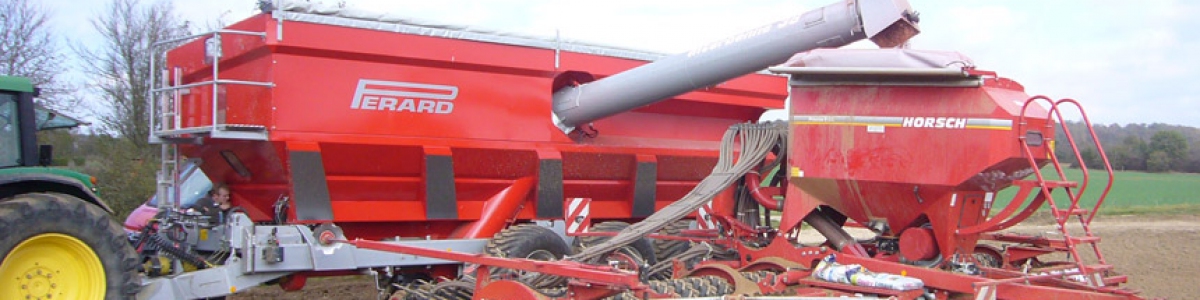

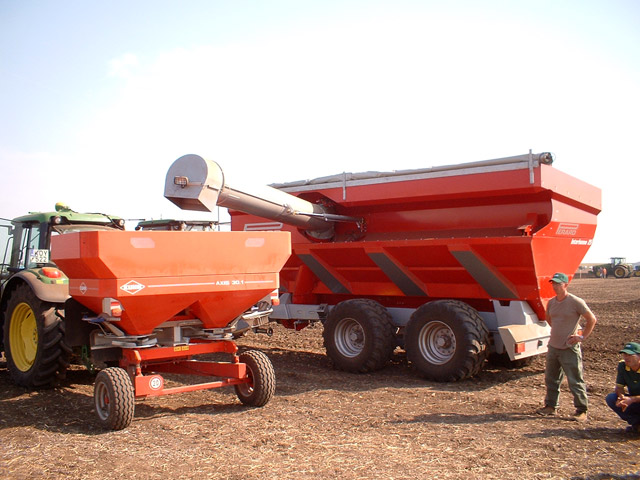

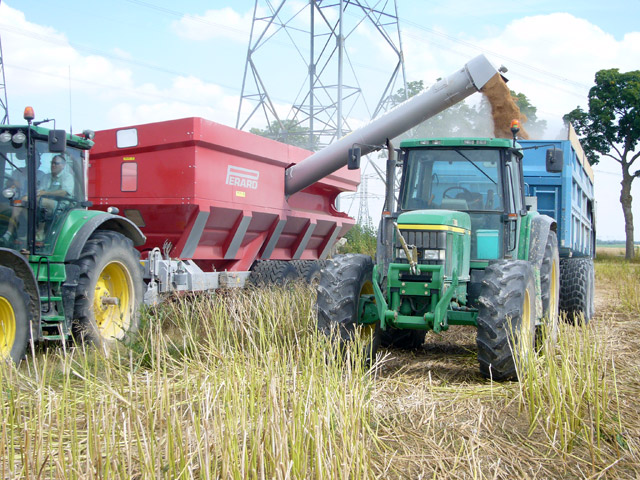

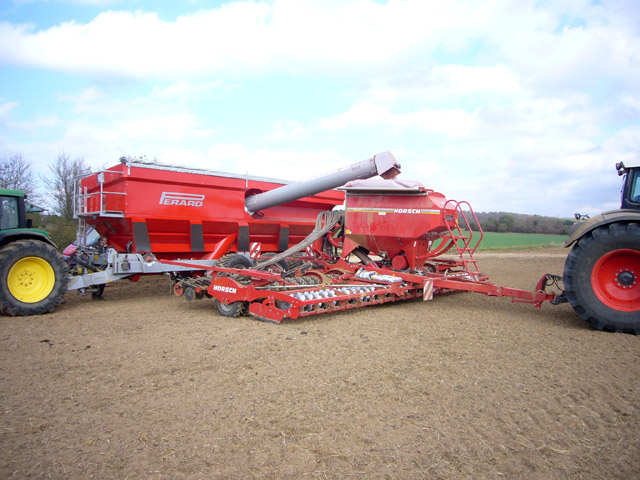

Trailed storage bins Interbenne manufactured by Perard, France

Basic equipment:

• Type: are intended for
  accumulation, transportation and reloading of grain, corn, sunflower,
  rapeseed and granular fertilizers.
• Chassis: Consists of two reinforced beams braced
  crossbars. A tandem sprung wheel suspension is attached to the chassis and
  hitch. Type: 1 axle (Model TTR 21), 2 axles (Model TTR 27), 3 axles (Model TTR 39). Rear axle steering system for TTR 39.
• Hopper: all-metal, with a reinforced body,
  observation windows, awning made of rubberized material. Protective metal meshes
  to prevent damage to the augers. The bunker is attached to the chassis. Maximum
  bunker width — 2.55 m.
• Unloading system: longitudinal and augers with
  intermediate supports. Inclined auger for partial discharge
  unloading screw. Automatic unloading control system, which
  includes: hydraulically operated curtains that prevent breakage
  augers, control over the speed of rotation of augers and unloading performance,
  auger control system. Mechanical curtains for cleaning augers and
  bunker unloading. The diameter of the feed auger in the bunker is 350 mm. Position
  the unloading screw in the course of work is regulated vertically and horizontally.
  Possibility of unloading behind the car. The diameter of the unloading auger is 500 mm. Working
  auger lighting. Hydraulically swiveling auger apron for guiding
  product unloading. Maximum unloading height — 4.6 m, minimum height
  unloading — 1.8 m. The maximum reach of the auger — 4.0 m.
• Hitch: Hitch drawbar with electro-hydraulic
  vibration compensation and position control relative to the chassis. hydraulic jack
  raising and lowering the hitch for quick connection to the tractor.
• Drive system: The augers are driven by the tractor PTO with
  frequency 1000 rpm. Drive multi-V-transmission with system
  belt break prevention, traction control, bevel gear
  reinforced type (torque transmission margin 2 times). Auto
  belt tensioner.
• Braking system: dual braking system
  on wheels (hydraulic and air), parking brake.
• Wheels: standard size 2×850/50R30.5 (TTR 21 model), 4×710/50×26.5 (TTR 27 model), 6×620/55×26.5(model TTR 39).
• Overall dimensions: ground clearance — 0.62 m (model TTR 21), 0.62 m
  (model TTR 27), 0.55 m (model TTR 39) length — 7.4 m (model TTR 21), 8.8 m strong> (model TTR 27), 11.2 m (model TTR 39). height — 3.7
  m (model TTR 21), 3.7 m (model TTR 27), 3.8 m
  (model TTR 39).
• Road lighting
• Staircase
• PTO kit
